HTM71 Universal Liner

Name: HTM71 Universal Liner
Brand: MS Plastics
SKU: LINER
Availability: InStock

£18.00 Ex VAT

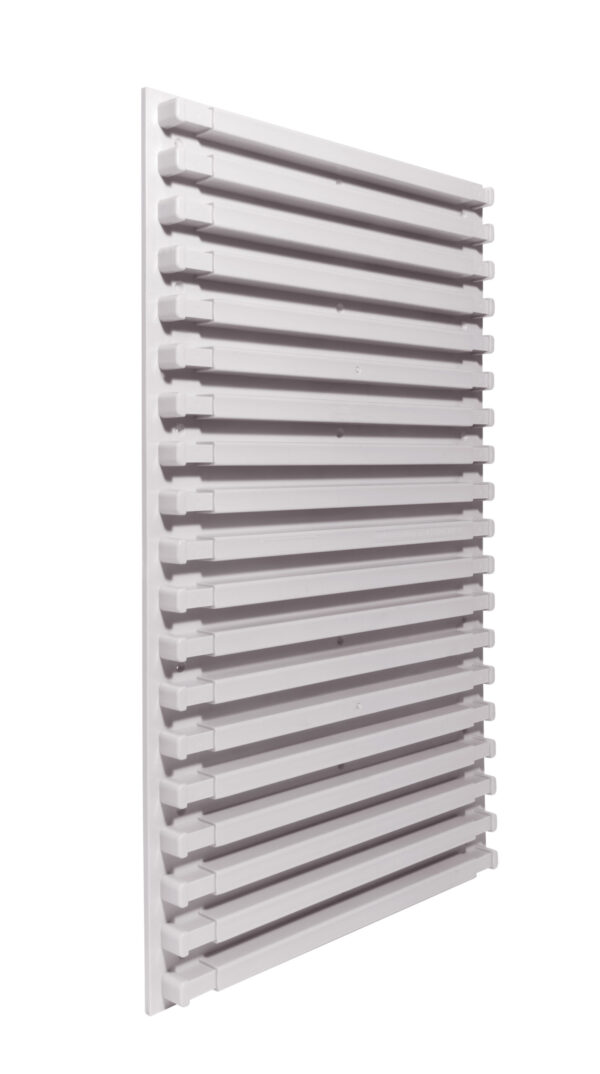

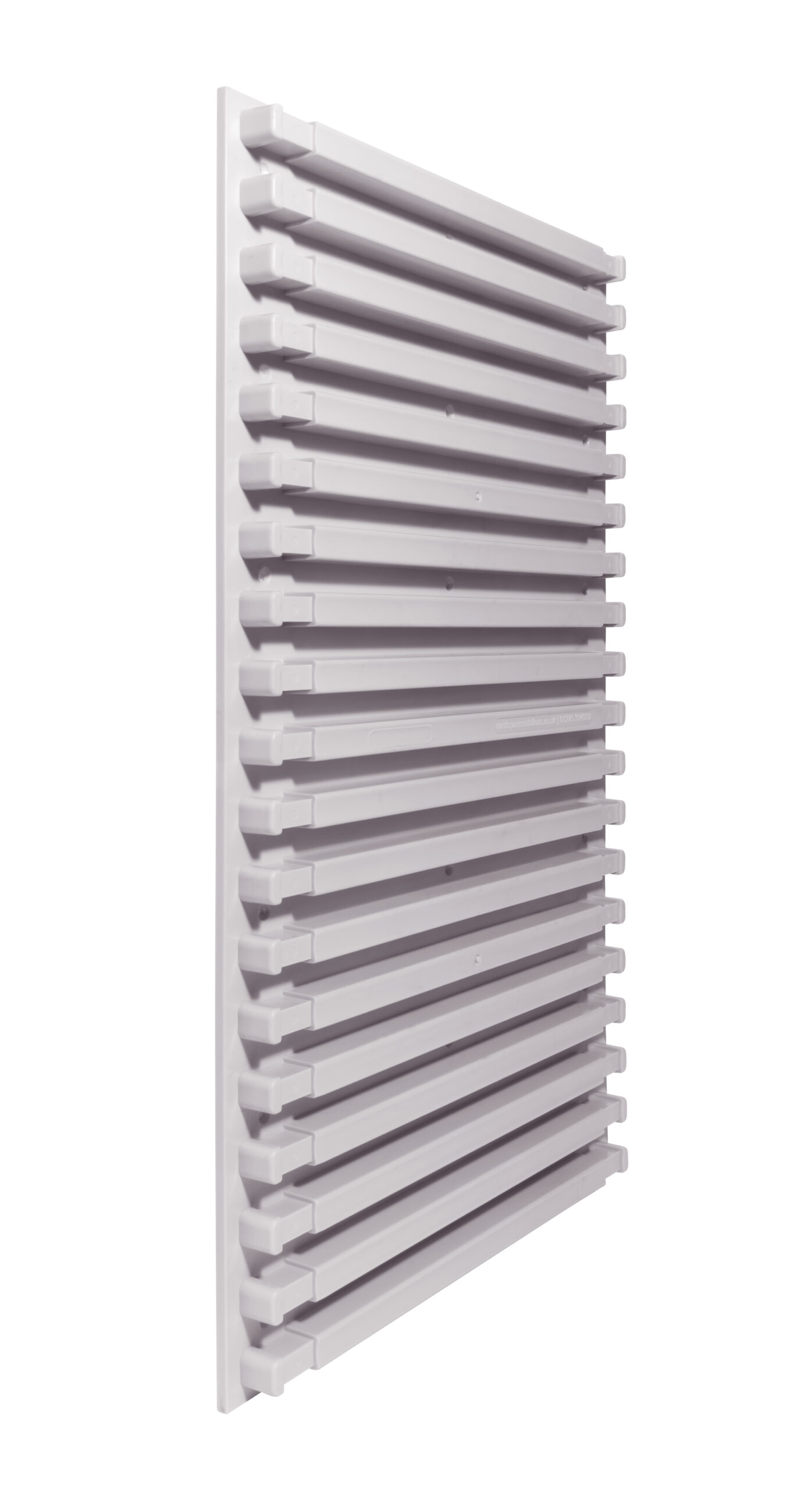

The HTM71 Universal Liner is designed to be installed in to HTM71 cabinets and trolleys, these are suitable for base units, wall units and full height units built to HTM71 specifications.

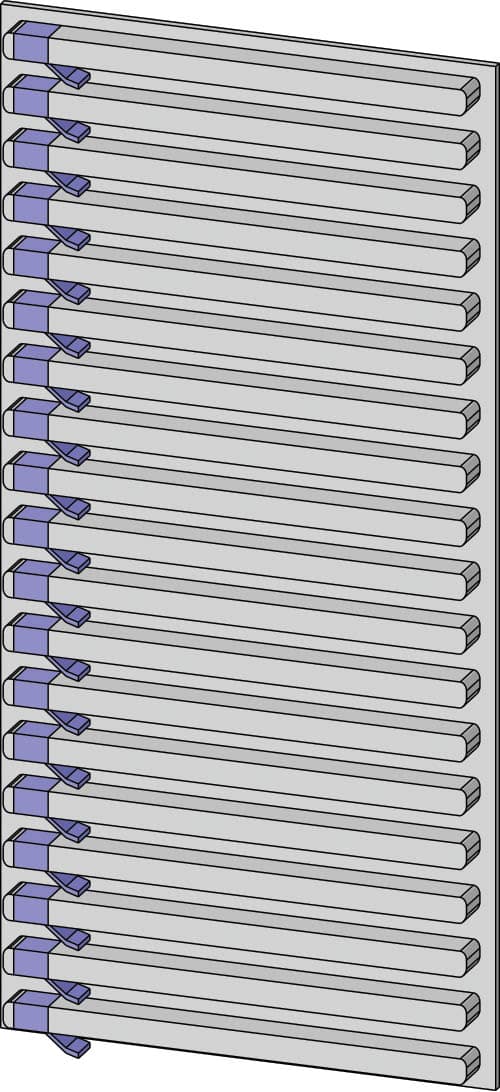

HTM71 liners are used in conjunction with the arrester clip to ensure that the HTM71 trays cannot be accidentally removed when in use. The arrester also allows for the trays to be arrested at an angle.

390mm (W) x 28mm (D) x 652mm (H)

SKU: LINER Categories: HTM71 Liners, HTM71 Storage Tags: healthcare storage, htm71, storage Brand: MS Plastics

Product Information

Description

Features

HTM71 storage cabinets can be fitted with our universal HTM71 liners that allow the HTM71 trays to be fitted and arrested at an angle.

390mm (W) x 28mm (D) x 652mm (H)

Usage

The key component to the HTM71 system is the 600mm x 400mm tray. All HTM71 capable systems can receive and use the tray. This could be cabinets, shelving or mobiles / trolleys.

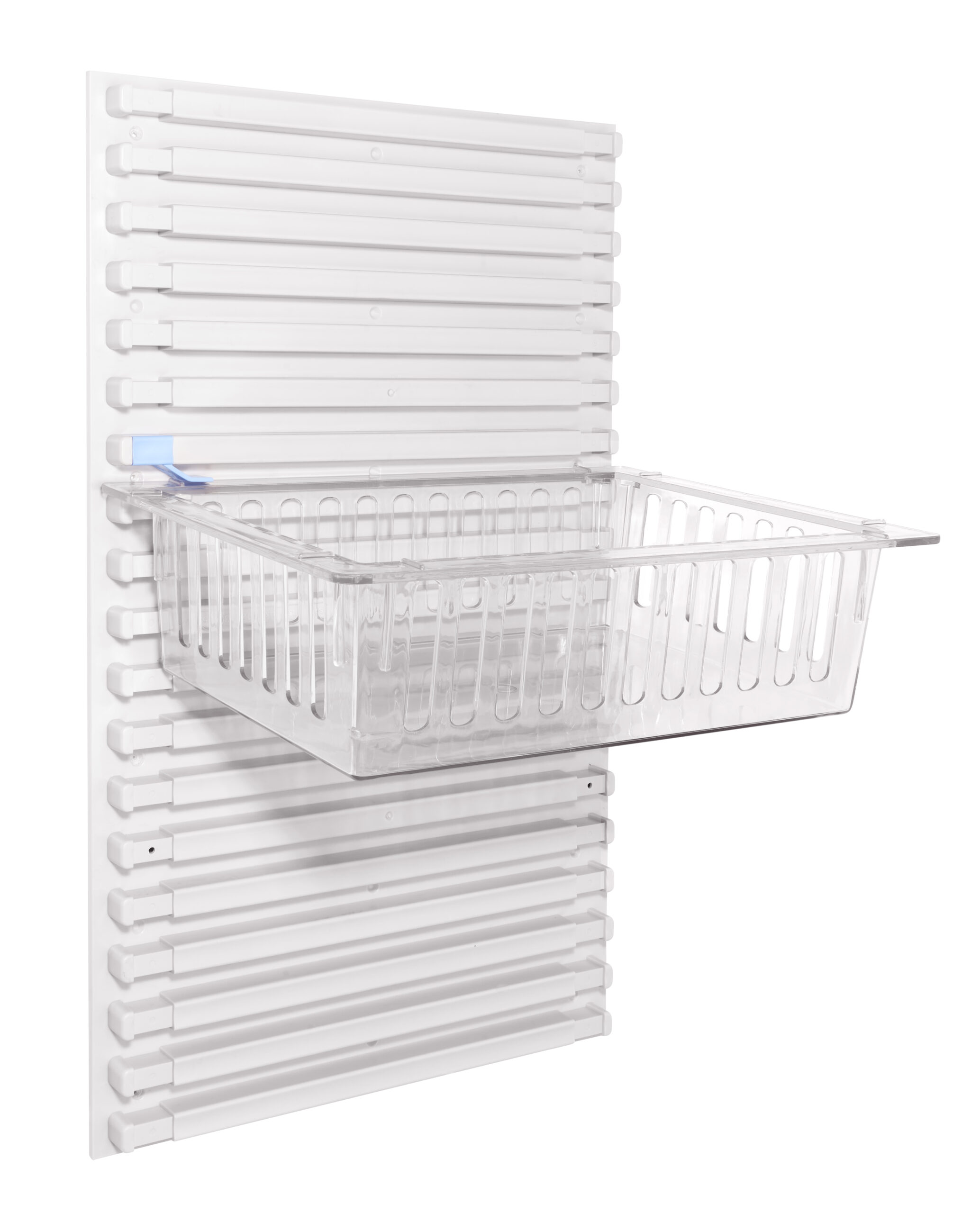

The tray sits within the cabinet liner and arrester clips are used to stop the tray leaving the cabinet unintentionally.

A major benefit of the HTM71 system is the ability to label and compartmentalise each individual tray. The labels can be used for product indentification, colour coding or a combination of both.

CAD & Datasheets

Technical Datasheet

HTM71 Trays and Dividers - Range Datasheet

Sketchup 3D Model (.skp)

BIM Model (.ifc)

Autocad 3D Model (.dwg)

HTM71

HTM71 is a Health Technical Memorandum first published by the NHS in 1998. It is one of a series of documents that aim to standardise building components in health buildings and make them as efficient as possible. HTM71 focuses on materials management modular storage and sets out the principles and the design of the system.
